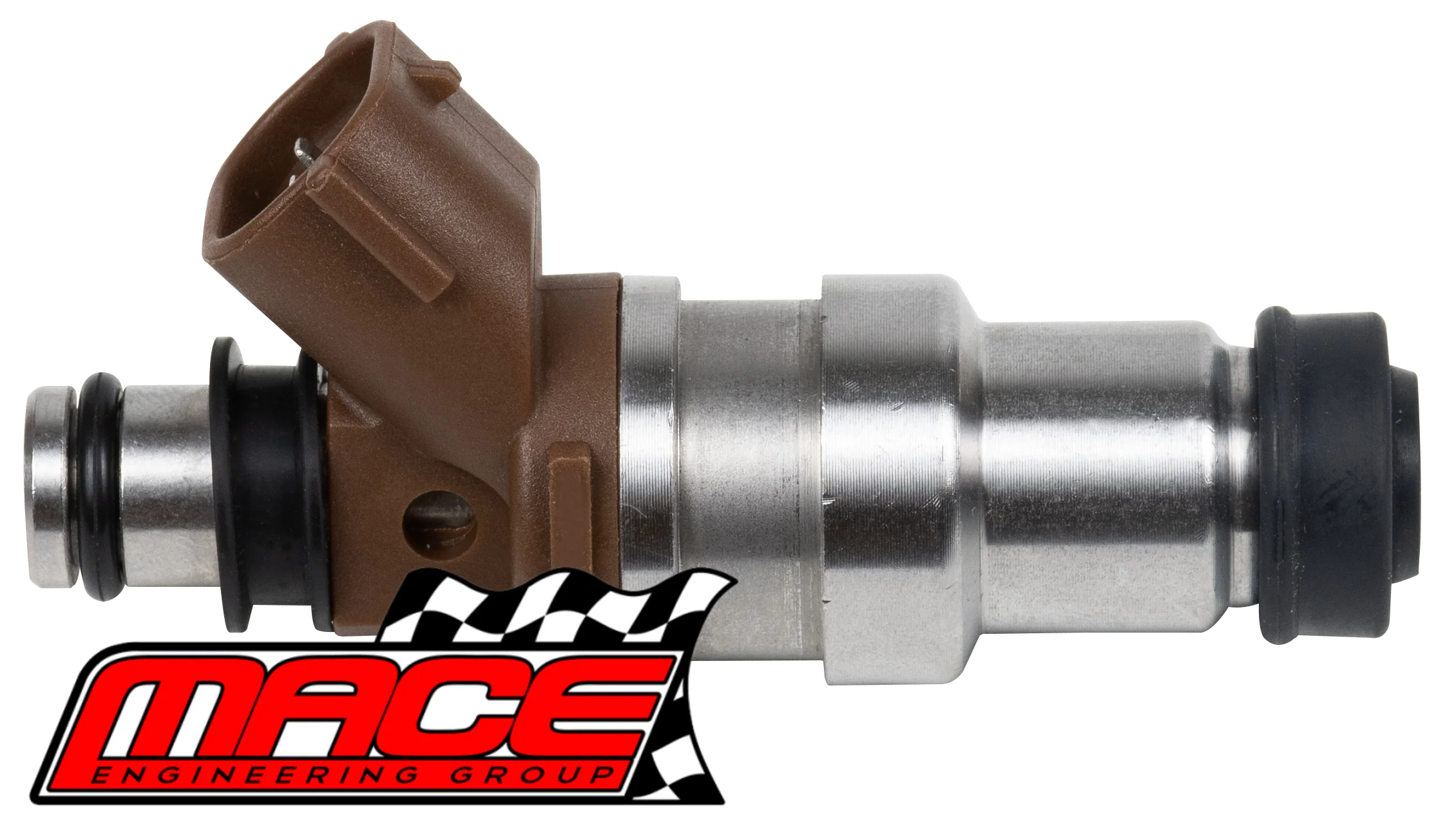

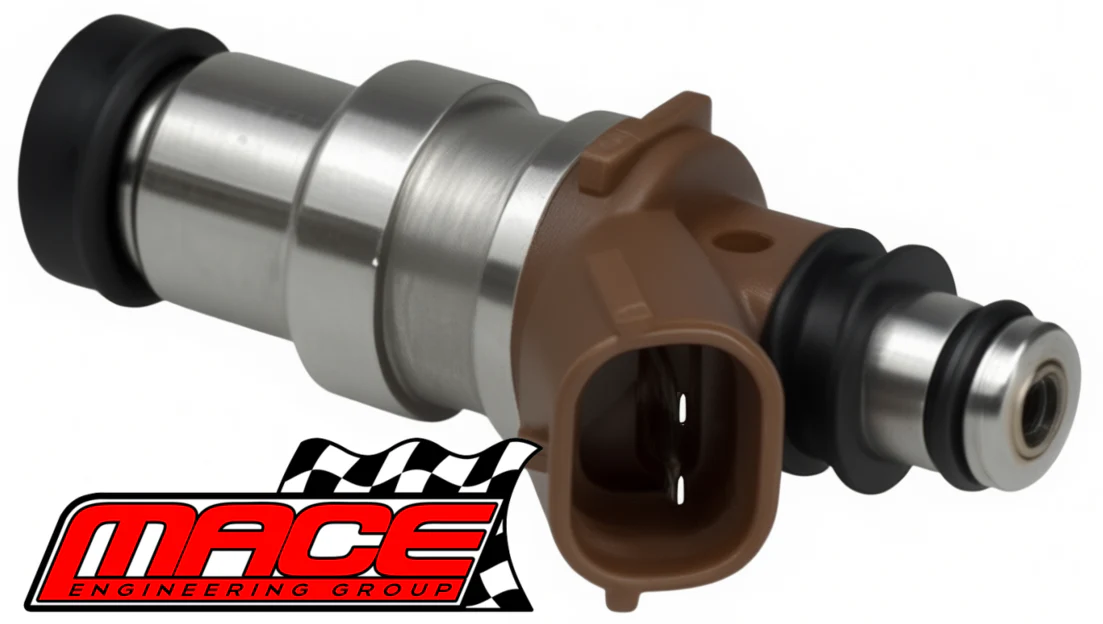

MACE Fuel Injectors: Fueling Your Engine's Performance

Fuel injectors are critical components that deliver fuel into the engine for optimal combustion. By ensuring the precise delivery of fuel into each cylinder, they play a vital role in maximising performance, fuel efficiency, and emissions control. MACE fuel injectors are designed to provide consistent and reliable fuel flow, making them the ideal upgrade for enhanced engine performance.

Whether you aim to enhance fuel output or maximise performance, MACE fuel injectors are crafted to meet dependable standards. With precision engineering and reliable design, these injectors help your engine perform at its best.

Upgrade your engine with MACE fuel injectors, the ultimate choice for precision fuel delivery and enhanced performance.

These fuel injectors suit Toyota vehicles fitted with the 3RZ-FE I4 engine.

Specifications:

• Interchangeable with 23250-75050
• Injector body design: Metal and composite plastic
• Static flow: 21.4 ± 0.9 lb/hr
• Dynamic flow (2.5ms): 2.40 ± 0.10 lb/hr
• Fuel delivery: 4-hole disc
• Electrical connector type: 2-pin EV1
• Length: 73.1 ± 0.5 mm
• Top o-ring with bottom seal
• Resistance: 12 ± 1 Ohms
• Test oil pressure: 3.00 ± 0.01 bar
• Testing voltage: 12 ± 0.1V
• Start voltage: ≤ 7V
• Sealing performance: 0.4Mpa, Leakage ≤ 1ml/min
• Emission angle: 15° ± 1°


Contents:

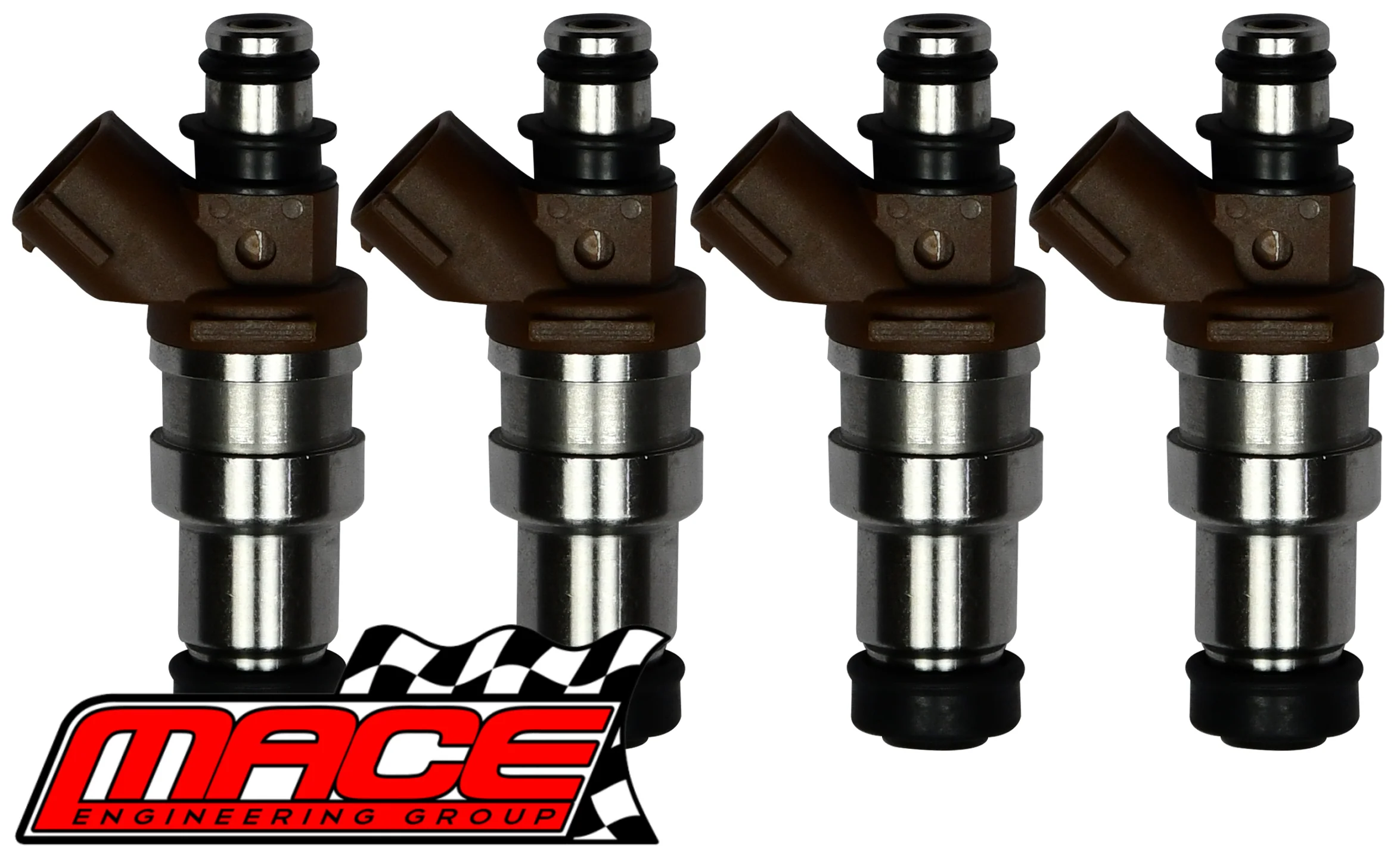

• 4 X Fuel injector

Vehicle Fitment Guide

Notes:

• These are standard replacement injectors but a tune is mandatory if you are using these injectors on a car that is not in the above vehicle fitment guide.
• The images are for illustrative purposes only.
